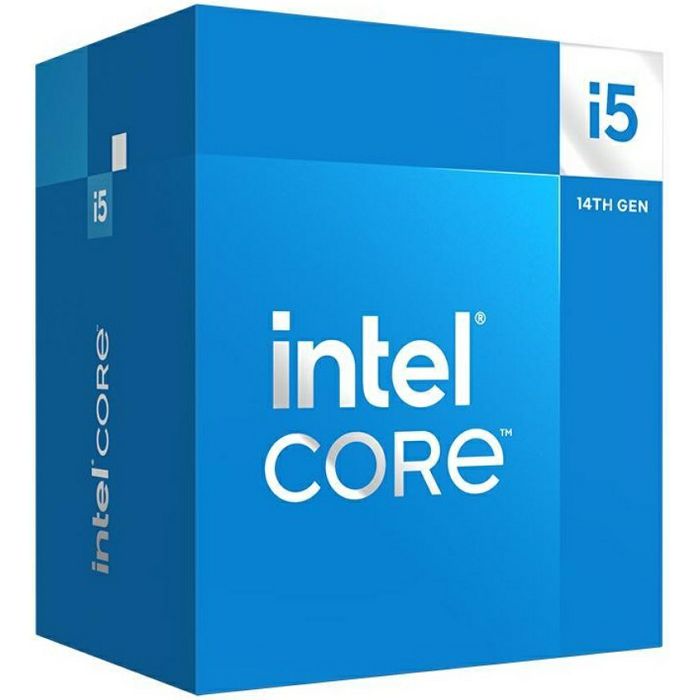

Intel Core i5-14400 (10C/16T, 4.7GHz, 20MB, LGA1700)

Product Collection Intel Core i5 Processors (14th gen)
Code Name Products formerly Raptor Lake
Vertical Segment Desktop
Processor Number i5-14400
Lithography Intel 7
Use Conditions PC/Client/Tablet
CPU Specifications:
Total Cores 10
Number of Performance-cores 6
Number of Efficient-cores 4
Total Threads 16
Max Turbo Frequency 4.7 GHz
Performance-core Max Turbo Frequency 4.7 GHz
Efficient-core Max Turbo Frequency 3.5 GHz
Performance-core Base Frequency 2.5 GHz
Efficient-core Base Frequency 1.8 GHz
Cache 20 MB Intel Smart Cache
Total L2 Cache 9.5 MB
Processor Base Power 65 W
Maximum Turbo Power 148 W
Memory Specifications:
Max Memory Size (dependent on memory type) 192 GB
Memory Types Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
Max Number of Memory Channels 2
Max Memory Bandwidth 76.8 GB/s
GPU Specifications:
GPU Name Intel UHD Graphics 730
Graphics Max Dynamic Frequency 1.55 GHz
Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units 24
Max Resolution (HDMI) 4096 x 2160 @ 60Hz
Max Resolution (DP) 7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel) 5120 x 3200 @ 120Hz
DirectX Support 12
OpenGL Support 4.5
OpenCL Support 3.0
Multi-Format Codec Engines 1
Intel Quick Sync Video Yes
Intel Clear Video HD Technology Yes
Number of Displays Supported 4
Expansion Options:
Direct Media Interface (DMI) Revision 4.0
Max Number of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations Up to 1×16+4, 2×8+4
Max Number of PCI Express Lanes 20
Package Specifications:
Sockets Supported FCLGA1700
Thermal Solution Specification PCG 2020C
TJUNCTION 100°C
